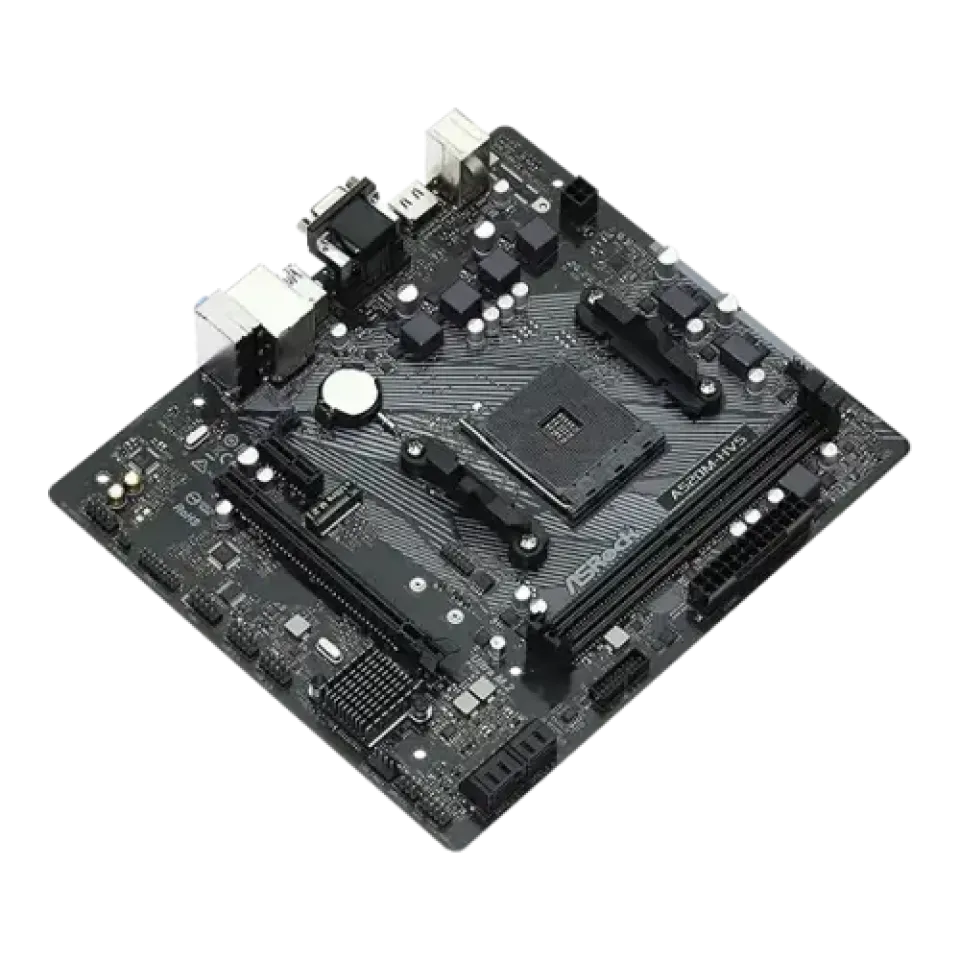

ASRock A520M-HVS AMD AM4 Micro ATX Motherboard
Availability : In Stock
SKU: PC-ASROCK-A520M-HVS-MOTHERBOARD
Brand: ASRock
৳ 6,800
৳ 7,500
You save ৳ 700
(9% OFF)
Only left in this option This option is out of stock
Quantity:
1
Inside Dhaka: ৳ 80
Outside Dhaka: ৳ 150
100% original product
Need Help? Contact Us:
No description available for this product.
| Supported CPU | Supports AMD AM4 Socket Ryzen 3000, 4000 G-Series and 5000 and 5000 G-Series Desktop Processors, 6 Power Phase design |
|---|---|
| Chipset | AMD A520 |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support, - Supports "Plug and Play", - ACPI 5.1 compliance wake up events, - Supports jumperfree, - SMBIOS 2.3 support, - CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment |
| Form Factor | Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm, Solid Capacitor design |
| Audio | 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec), Supports Surge Protection |
| PCI | 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*, 1 x PCI Express 3.0 x1 Slot |
| Type | DDR4 |
| Slots | 2 x DIMM |
| Supported Memory | Dual Channel DDR4 Memory Technology, AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / |
| Maximum Memory | 64GB |
| Graphics | - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*, - DirectX 12, Pixel Shader 5.0, - Shared memory default 2GB. Max Shared memory supports up to 16GB.**, - Dual graphics output: support D-Sub and HDMI ports by independent display cont |
| Max Shared Memory | 16GB |
| HDMI | 1 x HDMI |
| D-Sub (s) | 1 x D-Sub |
| USB (s) | 2 x USB 2.0 Ports (Supports ESD Protection), 4 x USB 3.2 Gen1 Ports (Supports ESD Protection), 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| LAN Port (s) | PCIE x1 Gigabit LAN 10/100/1000 Mb/s, Realtek RTL8111H, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE |
| Supported Storage | CPU:, 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*, Chipset:, 4 x SATA3 6.0 Gb/s Connectors |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
